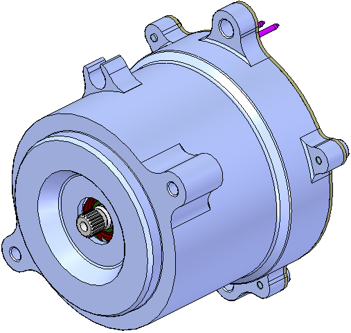

C-EPS Motor (Column Electric Power Steering Motor) BLM345
Product Type
Brushless Motors
Application
Automotive-Steering Motor
Detailed Introduction
- Product feature: Provides steering assist torque
- Rated voltage: 12 V
- Rated torque: 4.7 Nm
- Rated speed: 1400 rpm
- Output format: 3-phase x2 (redundant design)
- Shaft end type: Spline
- Induction magnet: None
- Housing material: Aluminum alloy & Iron cover
Practical Application Diagram
